Whirlpool Water Softener Error Code J36 - Causes and Solutions
Error Code J36
Common Whirlpool water softener error indicating motor or drive mechanism issues
Mechanical Problem
Typically related to motor assembly, gears, or internal drive components
Fixable Issue
Many J36 errors can be resolved with proper troubleshooting and maintenance
Recommended Water Softener Replacement Parts

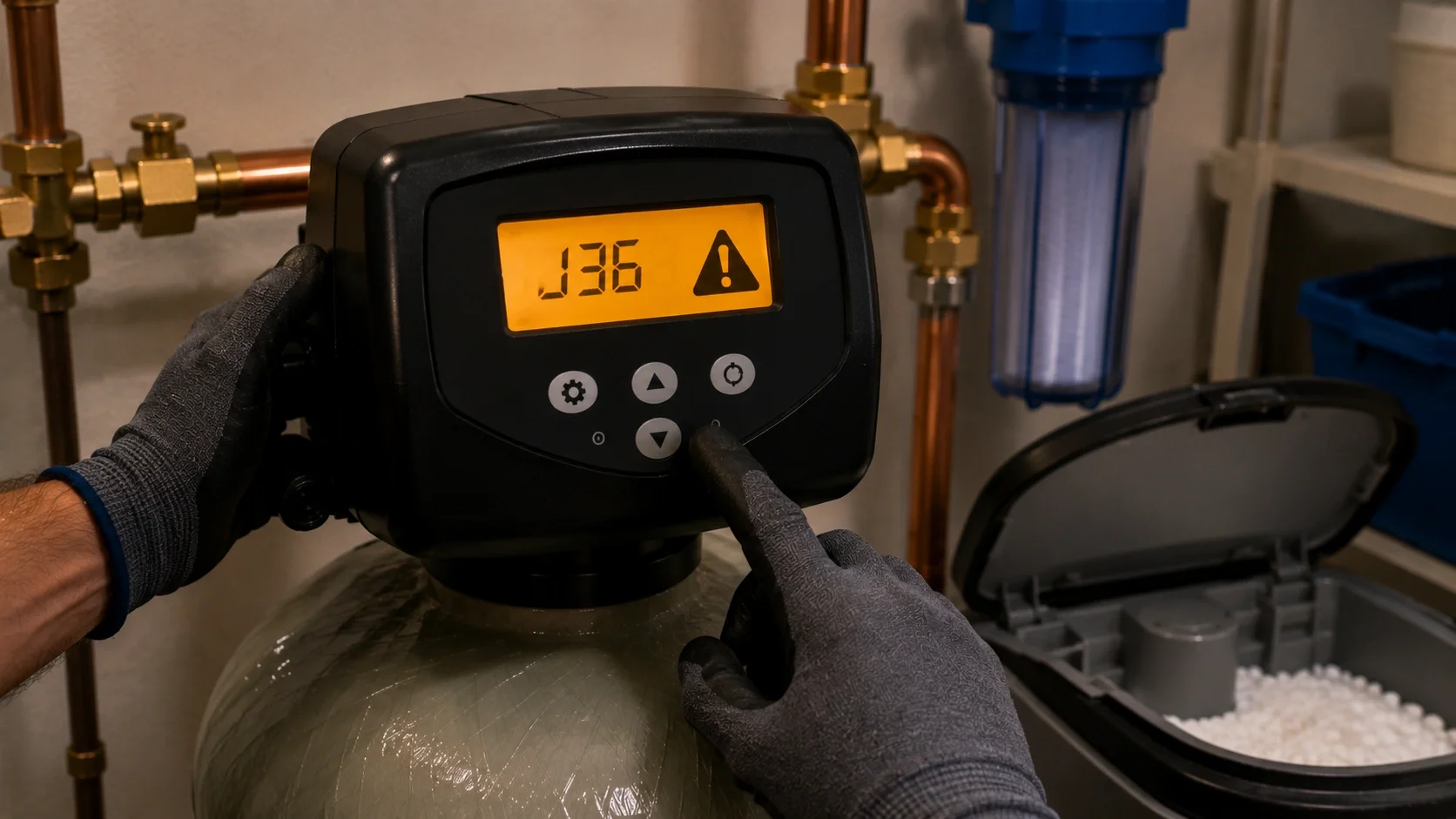

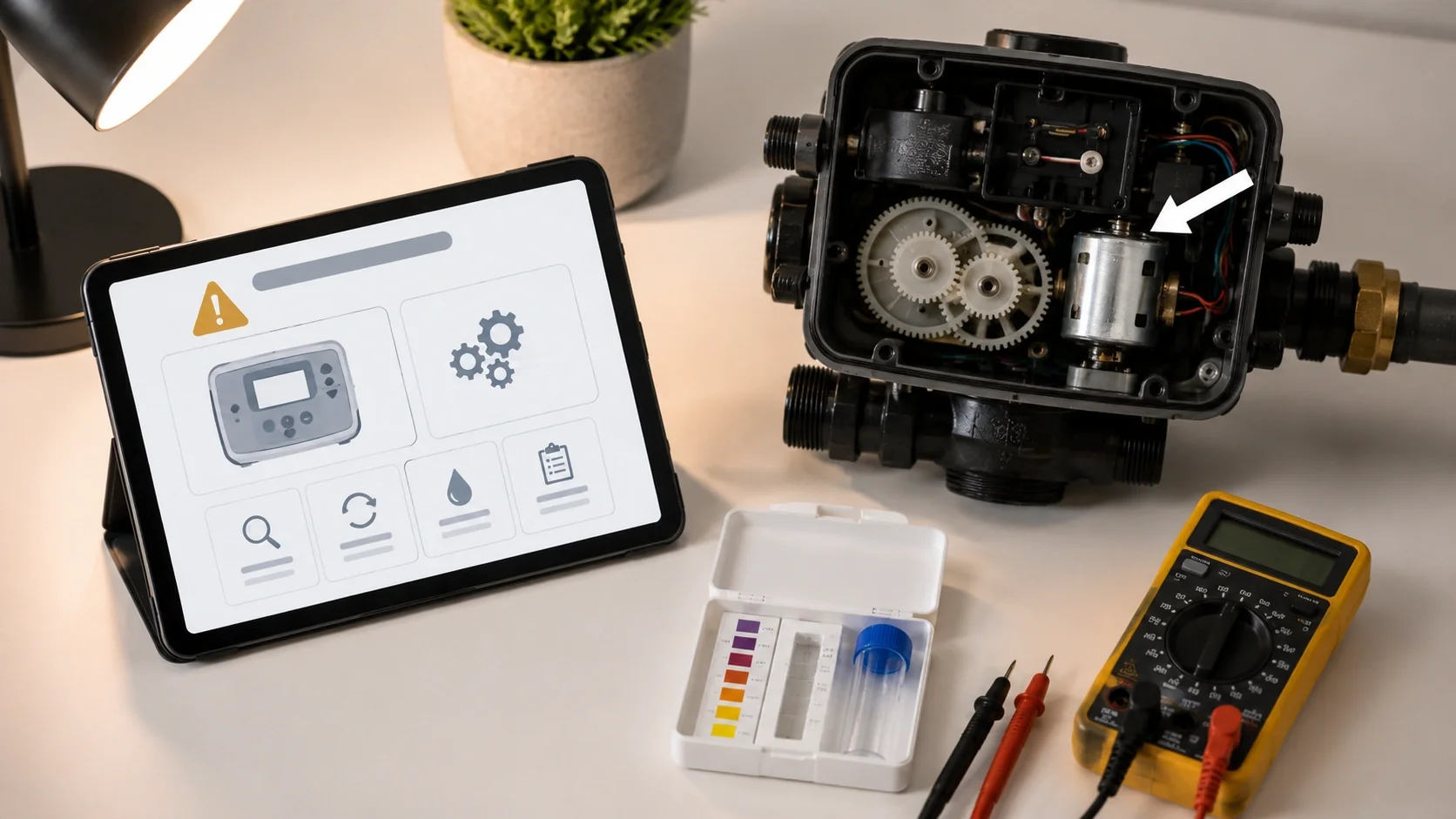

What Does Error Code J36 Mean?
Whirlpool Error Code J36: This error indicates a problem with the motor assembly or drive mechanism in your water softener. The control board has detected an abnormality in the motor's operation, such as excessive current draw, failure to start, or inability to complete its programmed movement.
Understanding what triggers this error can help you diagnose and resolve the problem effectively. When your Whirlpool water softener displays error code J36, the system typically stops mid-cycle or fails to initiate regeneration. This safety feature prevents damage to the motor and other components.
Understanding Error Code J36

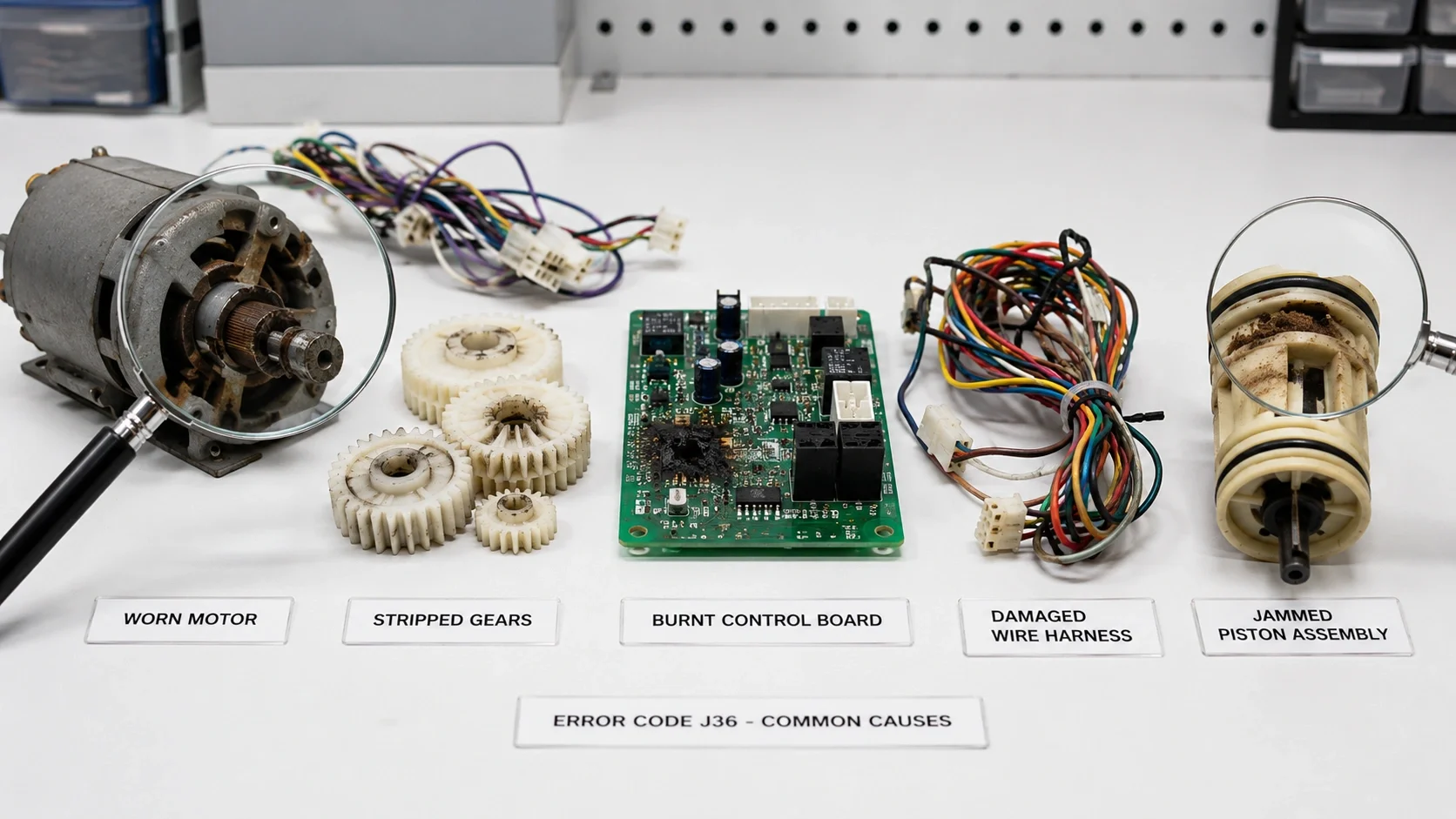

Common Causes of Error Code J36:
- Motor Assembly Failure: Worn-out or damaged motor components preventing proper operation
- Gear Mechanism Issues: Stripped gears or mechanical obstructions in the drive system
- Control Board Problems: Faulty signals from the control board to the motor assembly
- Power Supply Issues: Insufficient power reaching the motor during operation
- Mechanical Jam: Obstruction in the piston assembly or rotor preventing movement
- Wiring Problems: Loose or damaged electrical connections to the motor
What Happens When J36 Error Appears:
When your water softener displays error code J36, the system typically stops mid-cycle or fails to initiate regeneration. The error indicates that the control board has detected an abnormality in the motor's operation, such as excessive current draw, failure to start, or inability to complete its programmed movement. This safety feature prevents damage to the motor and other components.
Error Code Reference
| Error Code | Meaning | Common Fix |
|---|---|---|
| J36 | Motor assembly or drive mechanism failure | Replace motor or gears |
| J35 | Motor not turning properly | Check motor connections |
| J34 | Motor overcurrent detected | Check for jams, replace motor |
| J33 | Motor startup failure | Check power supply, motor |

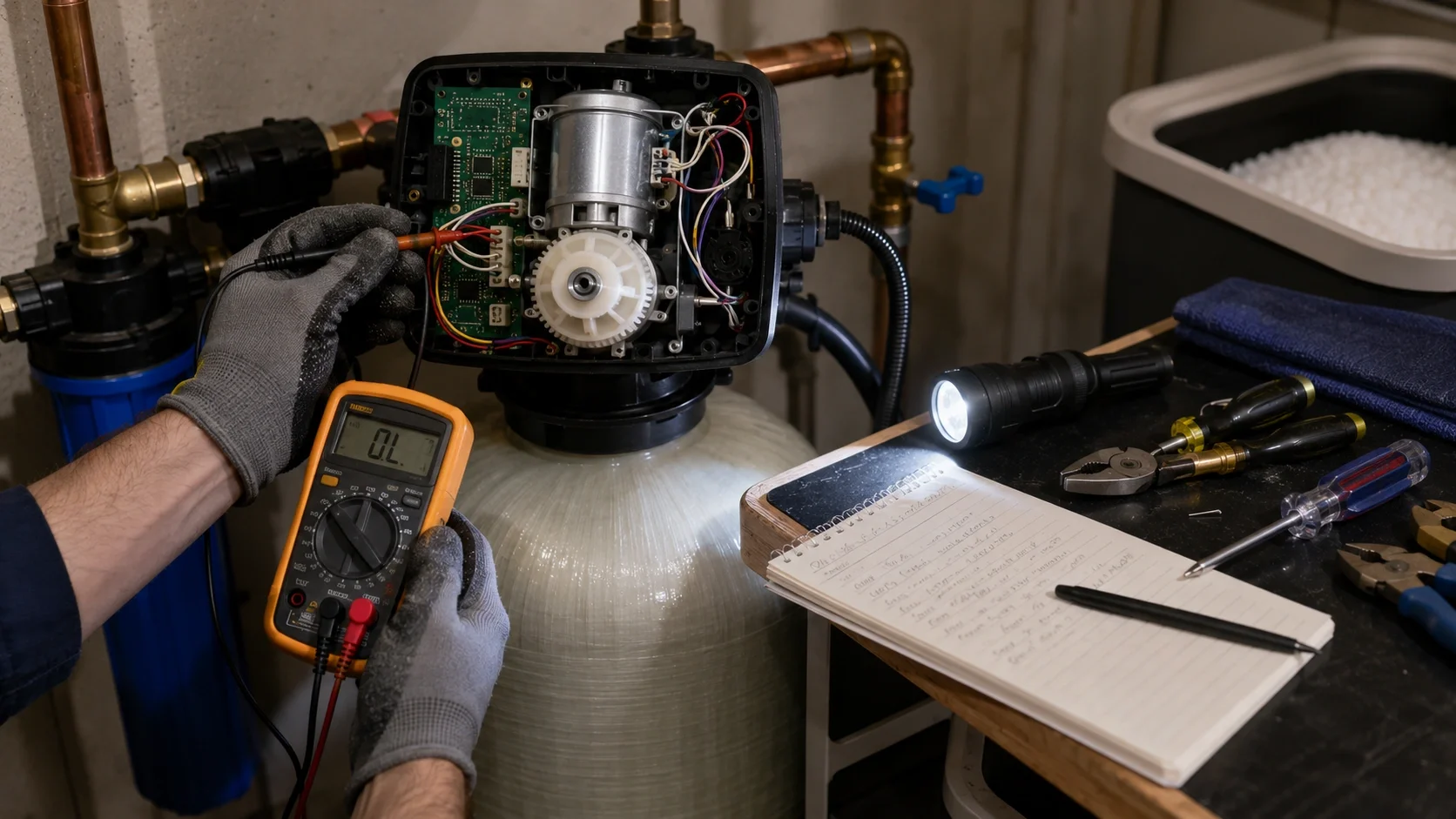

Troubleshooting Steps for Error Code J36
Before calling for professional service, try these troubleshooting steps to resolve the J36 error code on your Whirlpool water softener. Always ensure the system is unplugged or power is disconnected before performing any inspections.
Basic Troubleshooting Steps:
1 Power Cycle
Unplug the unit for 5 minutes, then restart to clear temporary errors
2 Check Power Supply
Verify the outlet is working and providing consistent power to the unit
3 Inspect Wiring
Check for loose connections at the motor and control board terminals
4 Manual Regeneration
Attempt to run a manual regeneration cycle to test motor operation
5 Visual Inspection
Look for obvious obstructions or damage to mechanical components
Advanced Troubleshooting Procedures:
If basic steps don't resolve the J36 error, these advanced procedures may help identify the specific issue:
- Motor Resistance Test: Use a multimeter to check motor winding resistance
- Gear Inspection: Examine the gear mechanism for wear, damage, or obstruction
- Control Board Diagnostics: Test control board output to the motor during cycle initiation
- Piston Assembly Check: Inspect the piston and seals for proper movement and condition
- Voltage Verification: Confirm the motor is receiving proper voltage during operation

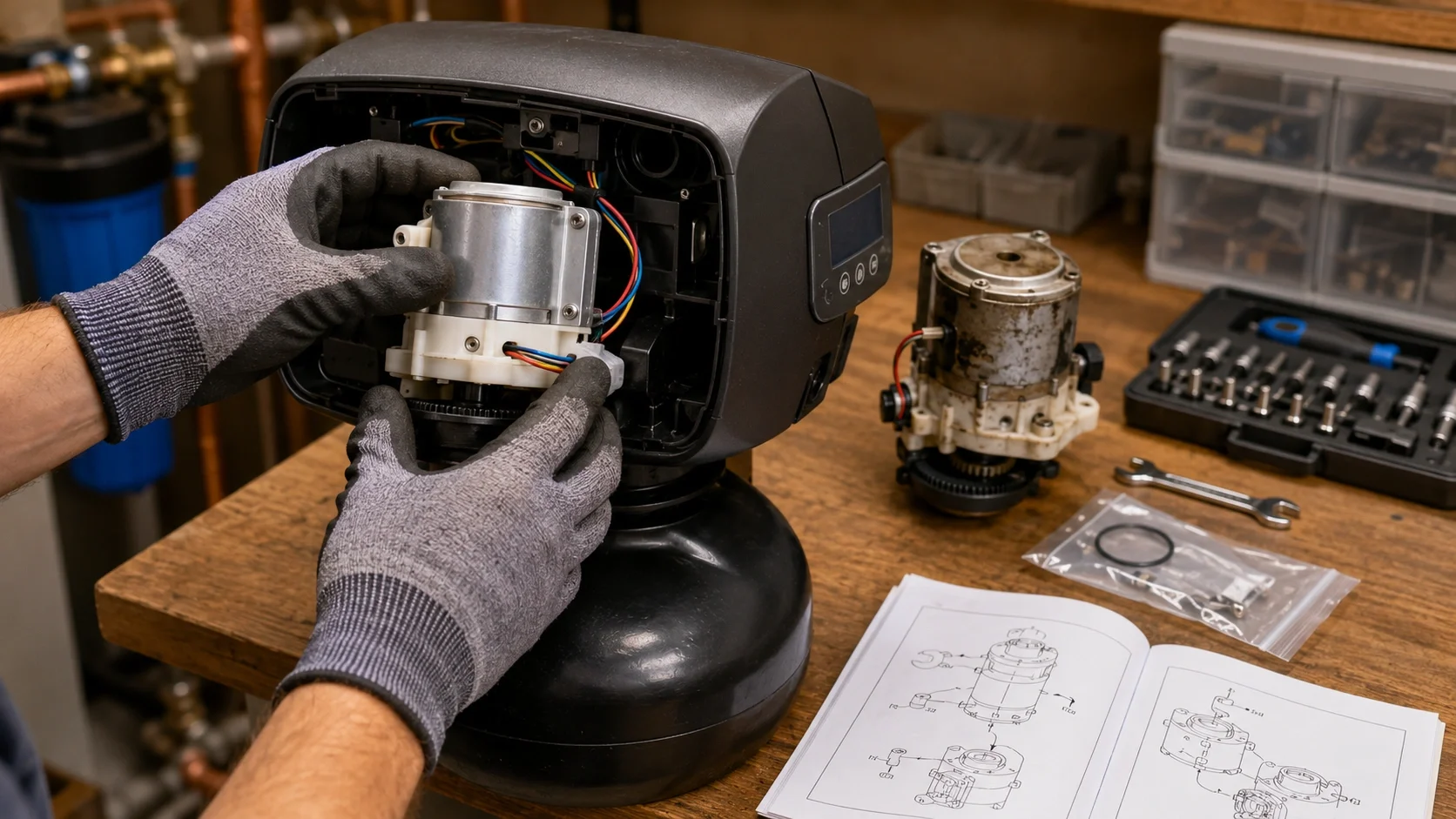

Repair Solutions for J36 Error Code
Depending on the specific cause of the J36 error, different repair solutions may be required. Here are the most common fixes for this Whirlpool water softener error.
Common Repair Solutions:
- Motor Replacement: Installing a new motor assembly when the existing motor fails
- Gear Mechanism Repair: Replacing stripped gears or clearing obstructions in the drive system
- Control Board Replacement: Installing a new control board if it fails to send proper signals
- Wiring Repair: Fixing damaged wires or loose connections in the electrical system
- Piston Assembly Service: Cleaning or replacing the piston assembly if jammed or damaged
- Complete Drive Unit Replacement: Replacing the entire motor and gear assembly as a unit
Estimated Repair Costs
When to Call a Professional:
- If you're uncomfortable working with electrical components
- When the error persists after basic troubleshooting
- If the system is still under warranty
- When multiple components appear damaged or worn
- If you lack the proper tools for diagnosis and repair

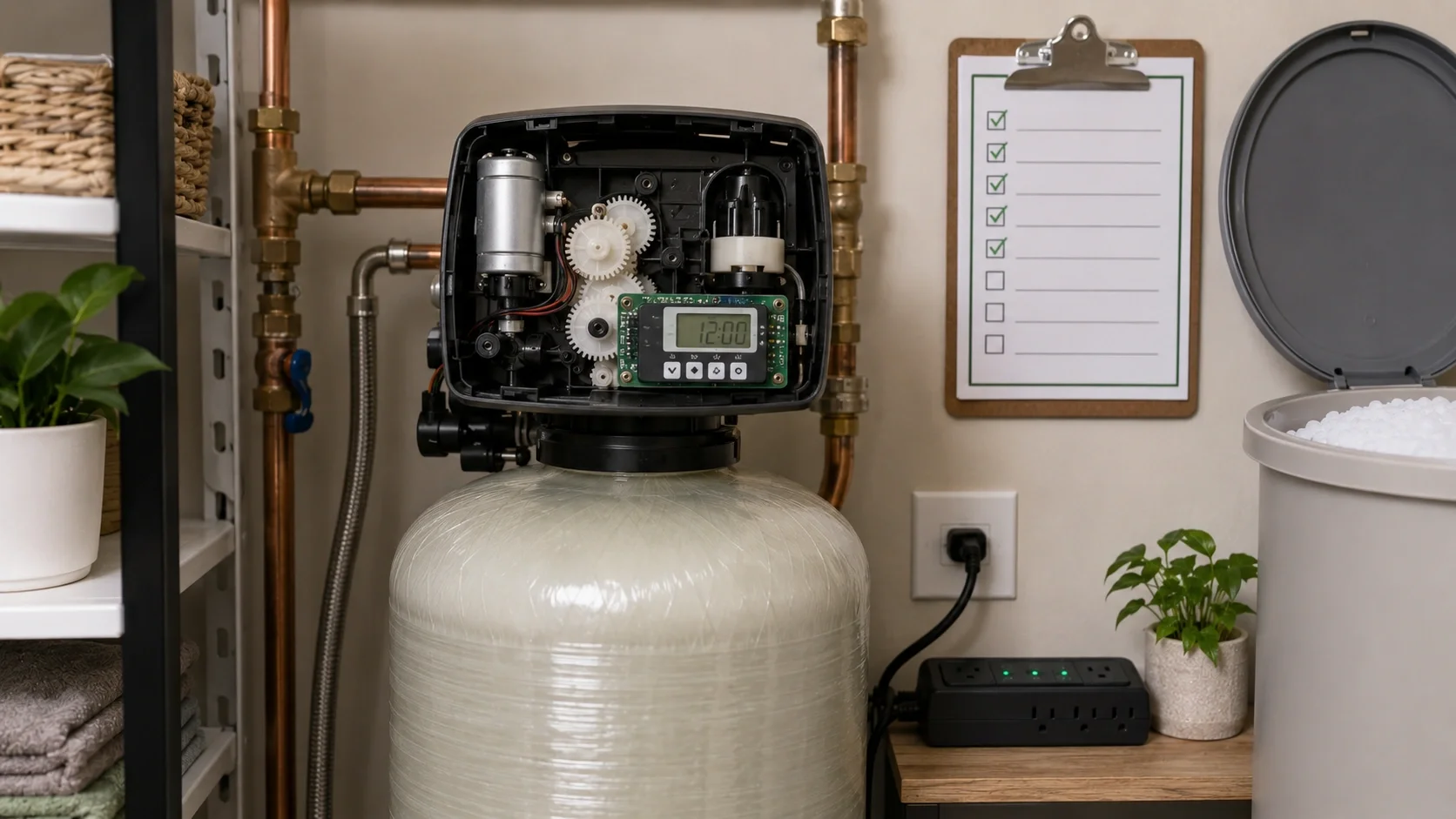

Preventing Future J36 Errors
Regular maintenance can help prevent error J36 from occurring in the future:
Key Prevention Tip: The most common cause of J36 errors is wear on the motor and gear mechanism. Replacing these components proactively at the first sign of wear can prevent sudden failure and emergency repairs.

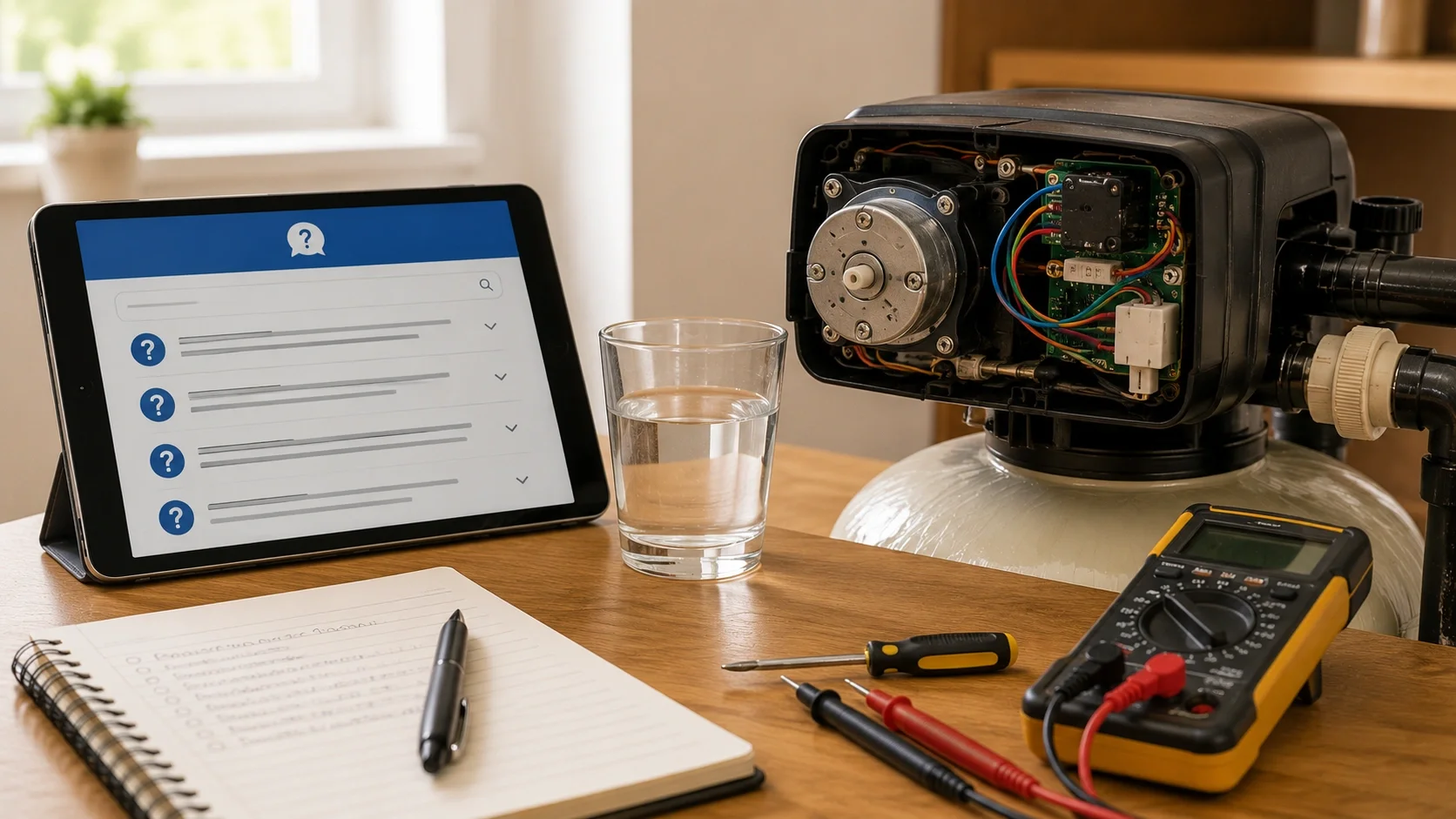

Frequently Asked Questions
What does error code J36 mean on a water softener?
Error code J36 indicates a problem with the motor assembly or drive mechanism. The control board has detected an abnormality in the motor's operation, such as failure to start or excessive current draw.
Can I reset error code J36 myself?
Yes, try unplugging the unit for 5 minutes and then restarting. If the error clears but returns, there's likely a mechanical issue that needs repair.
How much does it cost to fix error J36?
DIY repair costs $50-$100 for parts. Professional repair typically costs $150-$350. Complete unit replacement can cost $400-$800.
Is error J36 covered under warranty?
If your water softener is within the warranty period, the motor and control board are typically covered. Contact the manufacturer to verify coverage.
What causes error J36 on water softeners?
Common causes include motor assembly failure, stripped gears, control board issues, power supply problems, mechanical jams, or wiring problems.
How long does it take to fix error J36?
Simple fixes like power cycling take minutes. Motor or gear replacement typically takes 1-2 hours for a DIY repair, or a few hours for professional service.

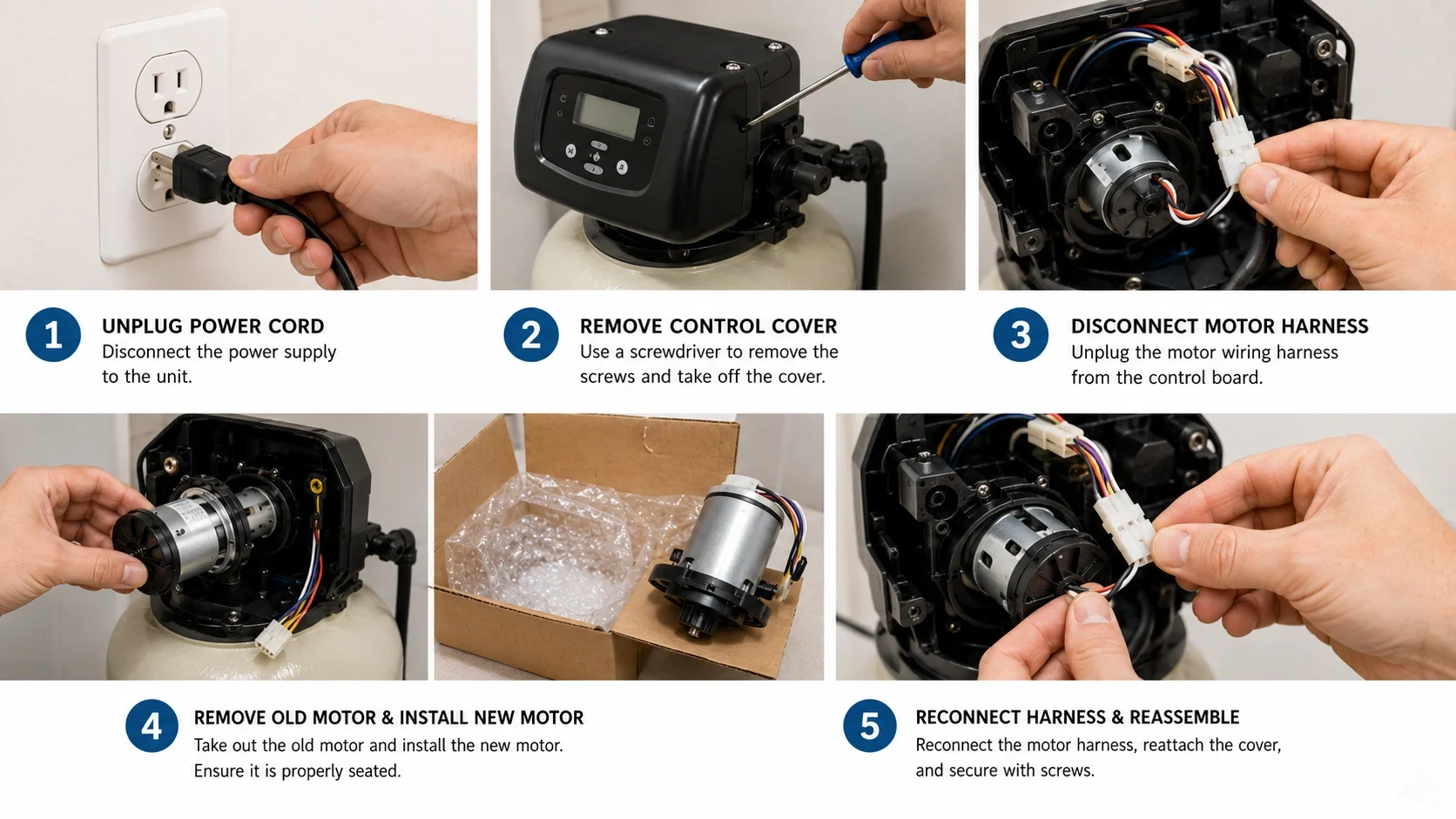

DIY Repair Guide for Error J36
If you're comfortable with basic repairs, follow this step-by-step guide to replace the motor assembly:
1 Disconnect Power & Water
- Unplug the unit from the electrical outlet
- Turn off water supply to the softener
- Release pressure by opening a nearby faucet
2 Remove Control Valve
- Remove the control valve cover
- Disconnect wiring harnesses
- Remove screws securing the valve
3 Access Motor Assembly
- Locate the motor at the back of the control valve
- Remove motor mounting screws
- Slide motor out of the housing
4 Install New Motor
- Install new motor in reverse order
- Ensure proper alignment with gears
- Secure with mounting screws
5 Reassemble & Test
- Reconnect wiring and control valve
- Turn water supply back on
- Plug in and run regeneration cycle
- Verify error is cleared
