Water Softener Parts: A Complete Guide to Understanding Your System
Understanding the various parts of your water softener is essential for proper maintenance, troubleshooting issues, and making informed decisions about replacements. Most water softening systems share common components that work together to remove hardness minerals from your water. This comprehensive guide will help you identify each part, understand its function, and learn how to maintain it for optimal performance.
Why This Matters: Knowing your water softener's parts can save you hundreds of dollars in repair costs. Many common issues can be fixed with simple part replacements rather than replacing the entire system. Understanding your system also helps you communicate effectively with technicians and make informed purchasing decisions.
Expert Knowledge
Learn about all critical components of your water softening system
Maintenance Tips
Extend the life of your system with proper care techniques
Troubleshooting Help
Identify and resolve common water softener problems
Recommended Replacement Parts & Accessories

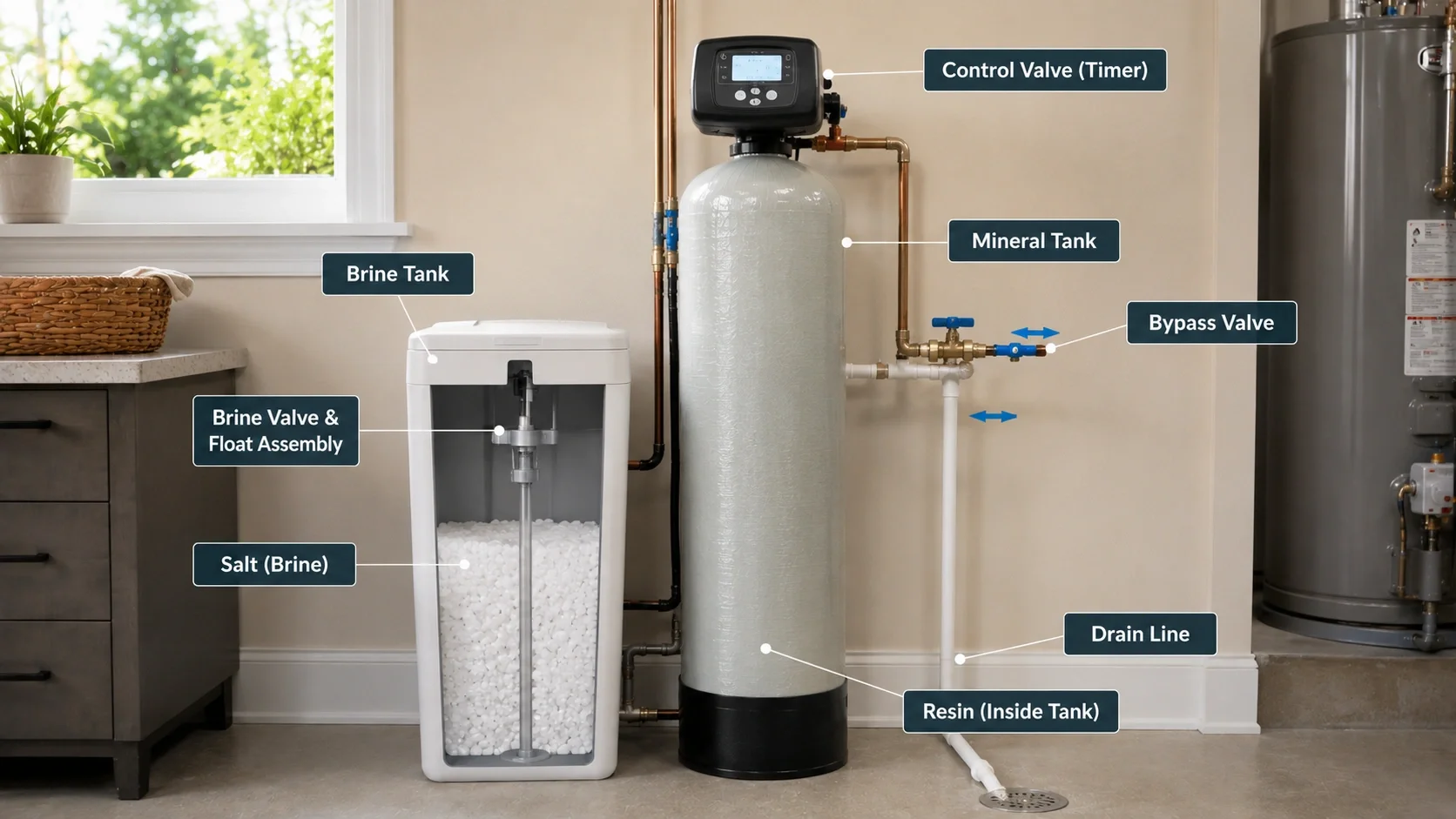

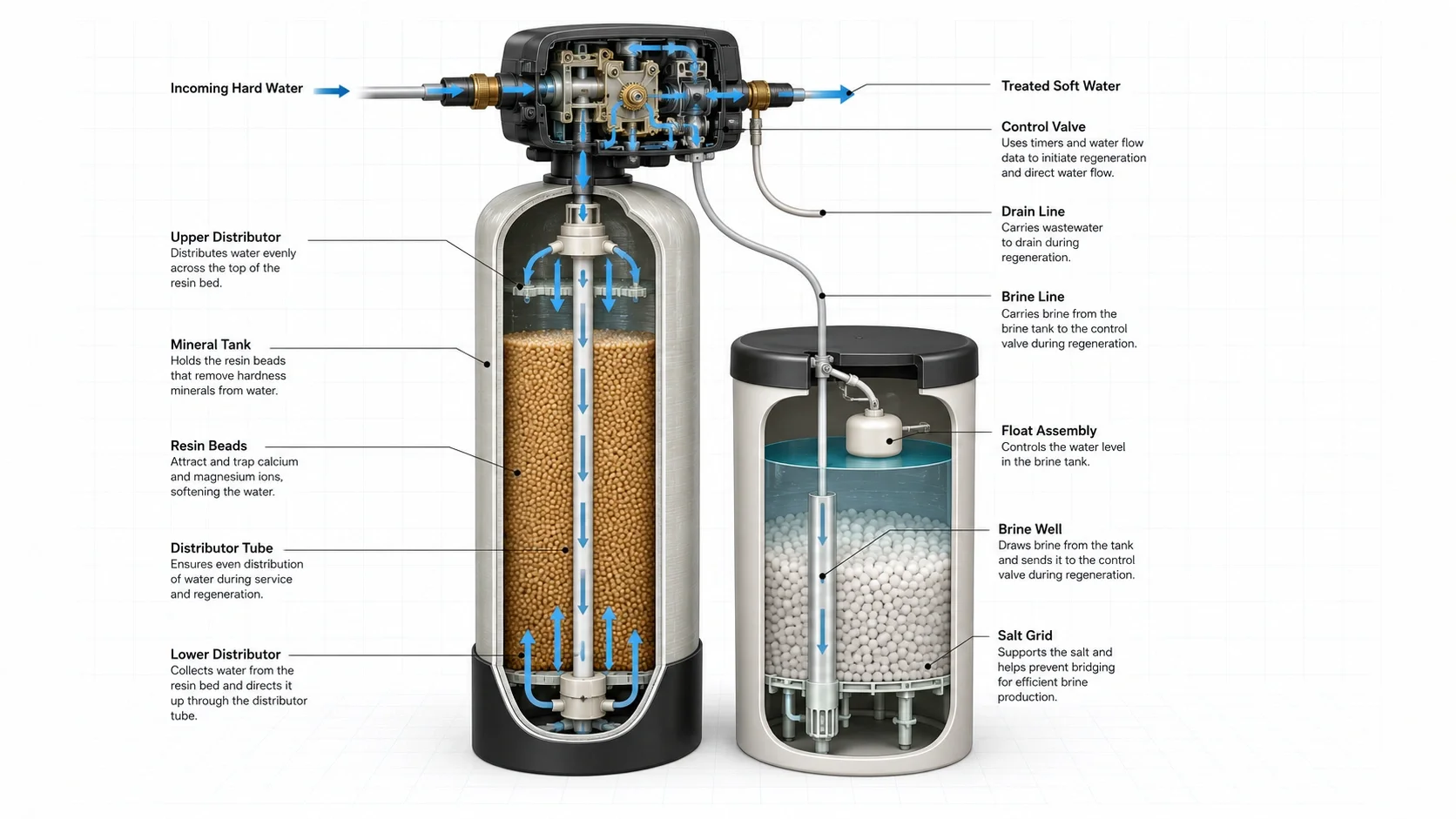

Main Parts of a Water Softener System
Mineral (Resin) Tank
The mineral tank is the core component where water softening occurs. This pressurized tank contains resin beads that facilitate the ion exchange process, removing calcium and magnesium minerals from your water.
Maintenance: Resin beads typically last 10-15 years before needing replacement. Periodic cleaning with resin bed cleaners can extend their lifespan and maintain efficiency.
Replacement: $200-$600Brine Tank
The brine tank stores salt (or potassium chloride) and water to create the brine solution used during the regeneration process. This solution cleans the resin beads and recharges them with sodium ions.
Maintenance: Regularly check salt levels and refill as needed. Clean the brine tank annually to prevent salt bridging and mushing, which can impair regeneration efficiency.
Replacement: $150-$400Control Valve / Head Unit
Often called the "brain" of the system, the control valve manages all operations including water flow, regeneration cycles, and timing. Modern systems feature digital controls for precision and efficiency.
Maintenance: Periodically check programming settings and ensure the valve operates smoothly. Protect from extreme temperatures and moisture to prevent malfunctions.
Replacement: $300-$800Resin Beads
These small, porous plastic beads are charged with sodium ions that exchange with hardness minerals (calcium and magnesium) in the water. The quality and quantity of resin beads directly affect softening capacity.
Lifespan: Typically 10-15 years, though this can vary based on water quality and usage patterns.
Replacement: $100-$300Distributor Tube
Located inside the resin tank, the distributor tube ensures even water distribution through the resin bed during both service and regeneration cycles. Proper function is essential for optimal system performance.
Replacement: $50-$150Bypass Valve
This important feature allows water to bypass the softening system for maintenance, repairs, or when softened water isn't needed. It ensures continuous water supply to your home during service.
Replacement: $50-$200Drain Line
The drain line removes wastewater generated during the regeneration process. Proper installation is crucial to prevent clogs, backflow, and ensure efficient disposal of regeneration brine.
Replacement: $20-$80Seals & O-Rings
These small but critical components prevent water leaks at connection points throughout the system. Regular inspection and replacement can prevent major water damage.

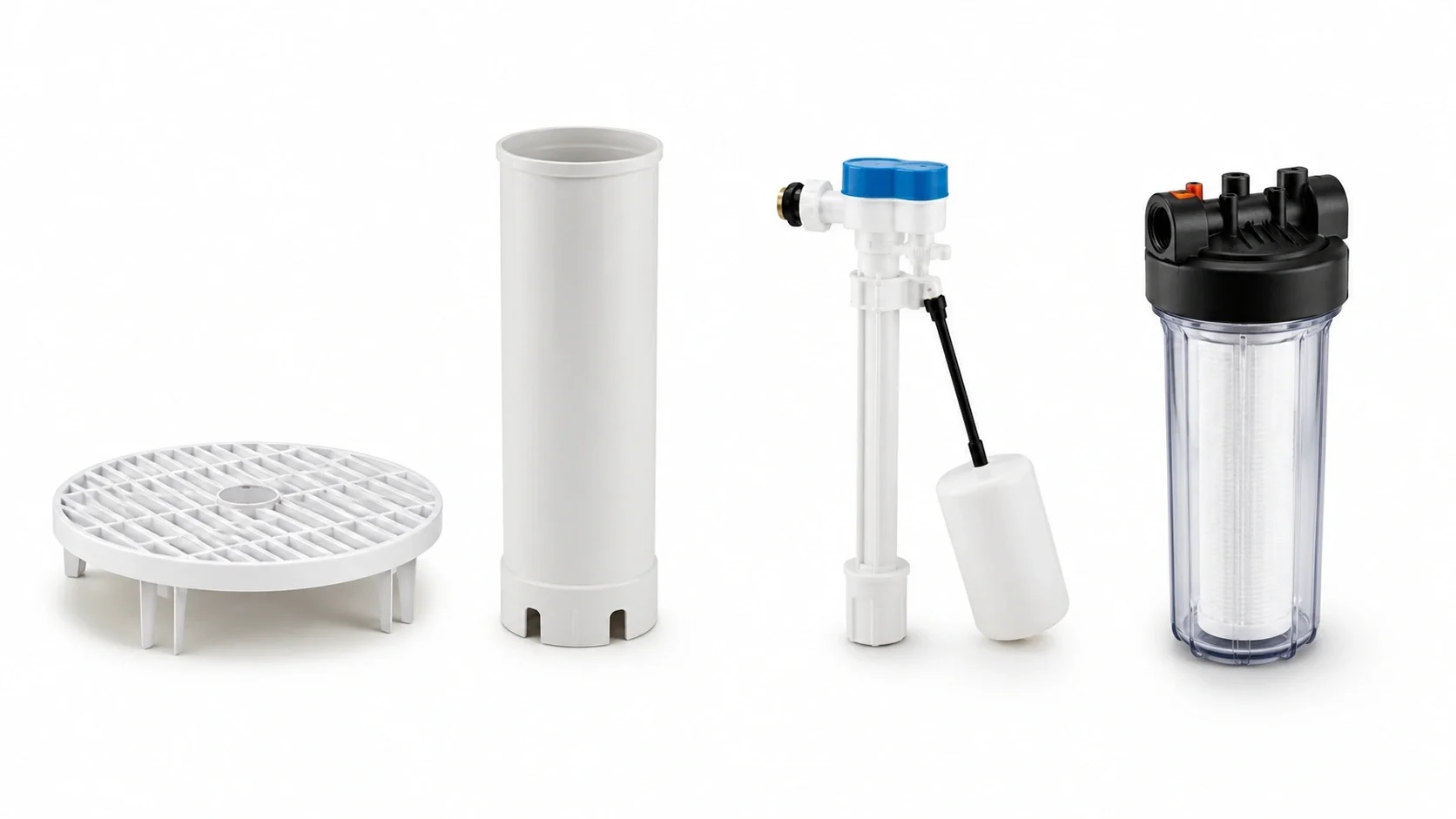

Replacement: $10-$50Optional or Additional Components
Salt Grid / Platform
These devices prevent salt bridging—a hard crust that forms between the salt and water in the brine tank. Salt grids promote proper brine formation and reduce maintenance requirements.
$20-$60Brine Well
A cylindrical tube inside the brine tank that protects the float assembly and ensures proper brine drawing during regeneration cycles.
$30-$80Float / Safety Valve
This component prevents overfilling of the brine tank, protecting against potential flooding and water damage. Regular inspection ensures proper operation.
$20-$60Sediment Pre-Filter
Installed before the water softener, this filter removes dirt, sand, and other particulates that could clog or damage the resin bed and control valve.

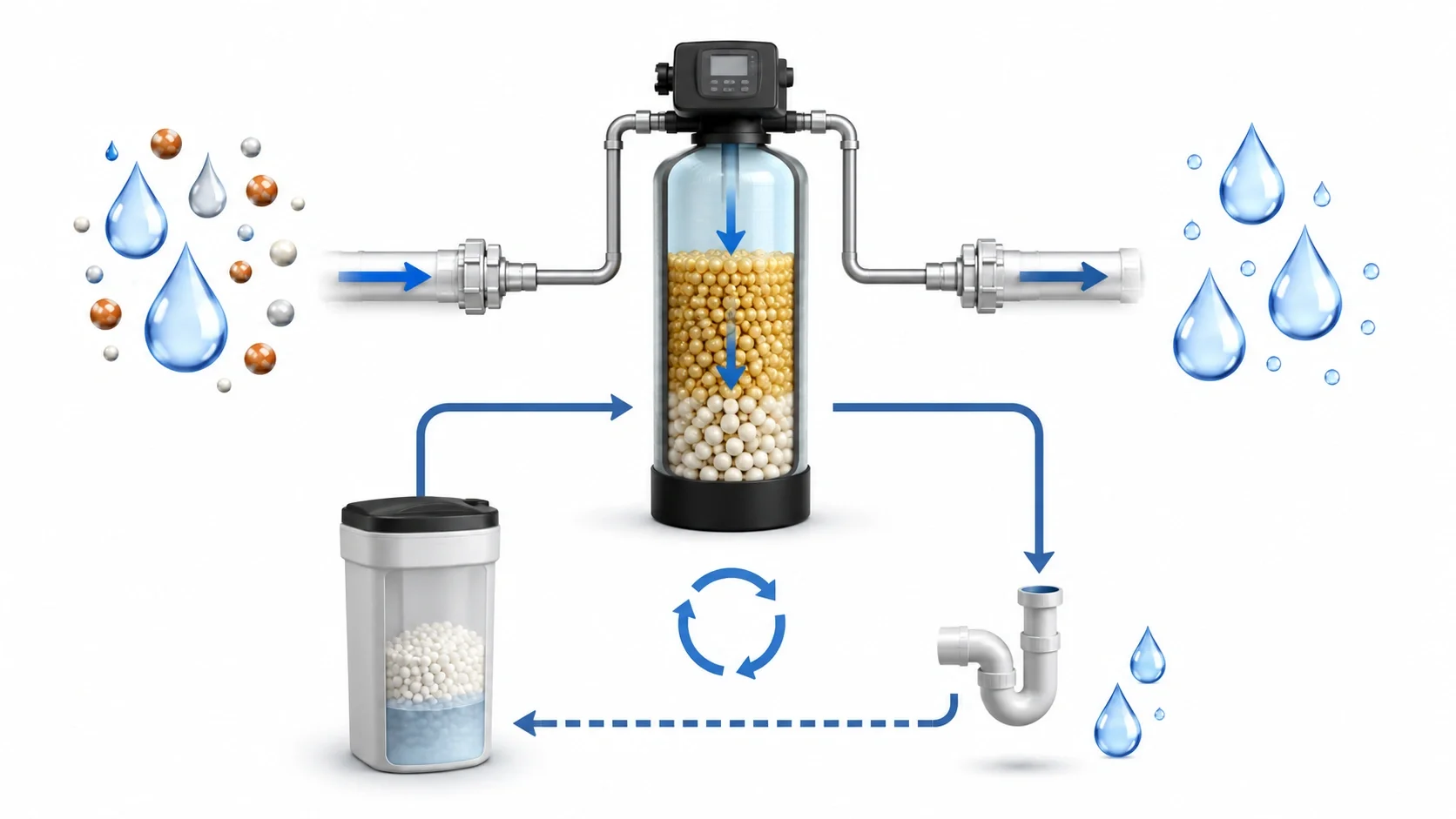

$30-$100How Water Softener Parts Work Together
- Hard water enters the system through the inlet connection and bypass valve.
- Water flows into the mineral tank and through the resin bed.
- Resin beads exchange sodium ions for calcium and magnesium ions, removing hardness minerals.
- Softened water exits through the distributor tube and out to household plumbing.
- Control valve monitors water usage and triggers regeneration when needed.
- Brine solution is drawn from the brine tank into the mineral tank.
- The brine cleans the resin beads and recharges them with sodium ions.
- Wastewater is flushed out through the drain line.
- The system rinses and returns to service mode.
Key Insight: Each part plays a critical role in the softening process. If any component fails, the entire system's performance can be compromised. Regular inspection and maintenance of all parts ensure optimal system function and longevity.

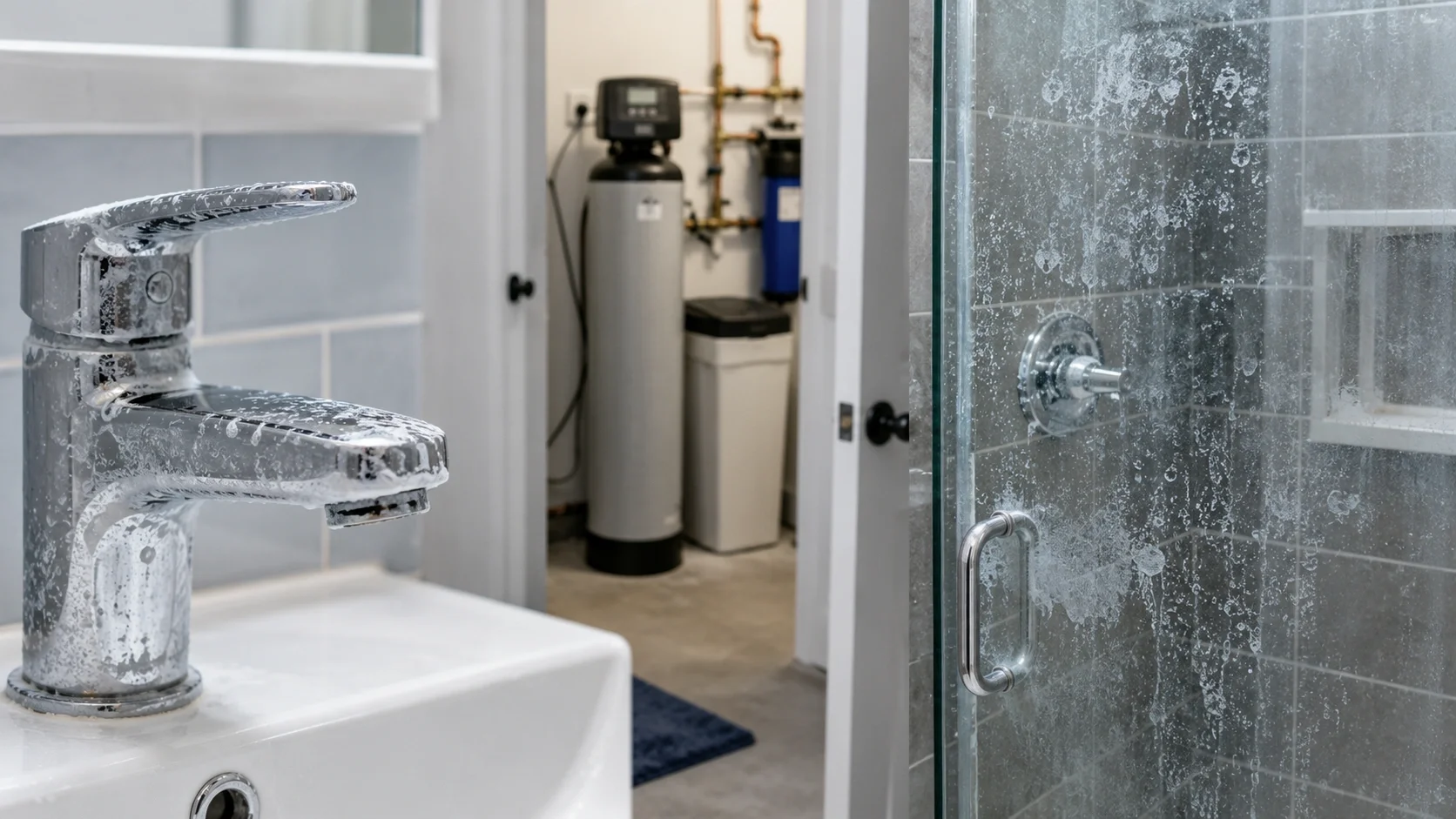

Common Signs of Part Failure
Water no longer feels soft or leaves spots on dishes – Resin beads or control valve issue.
Reduced flow from faucets – Clogged resin bed, distributor tube, or control valve.
Water running constantly to the drain – Stuck control valve or worn seals.
Hard crust in brine tank or salt not dissolving – Brine tank or salt grid issue.
Puddles around the system – Worn O-rings, seals, or cracked tanks.
No regeneration cycles occurring – Control valve or timer malfunction.

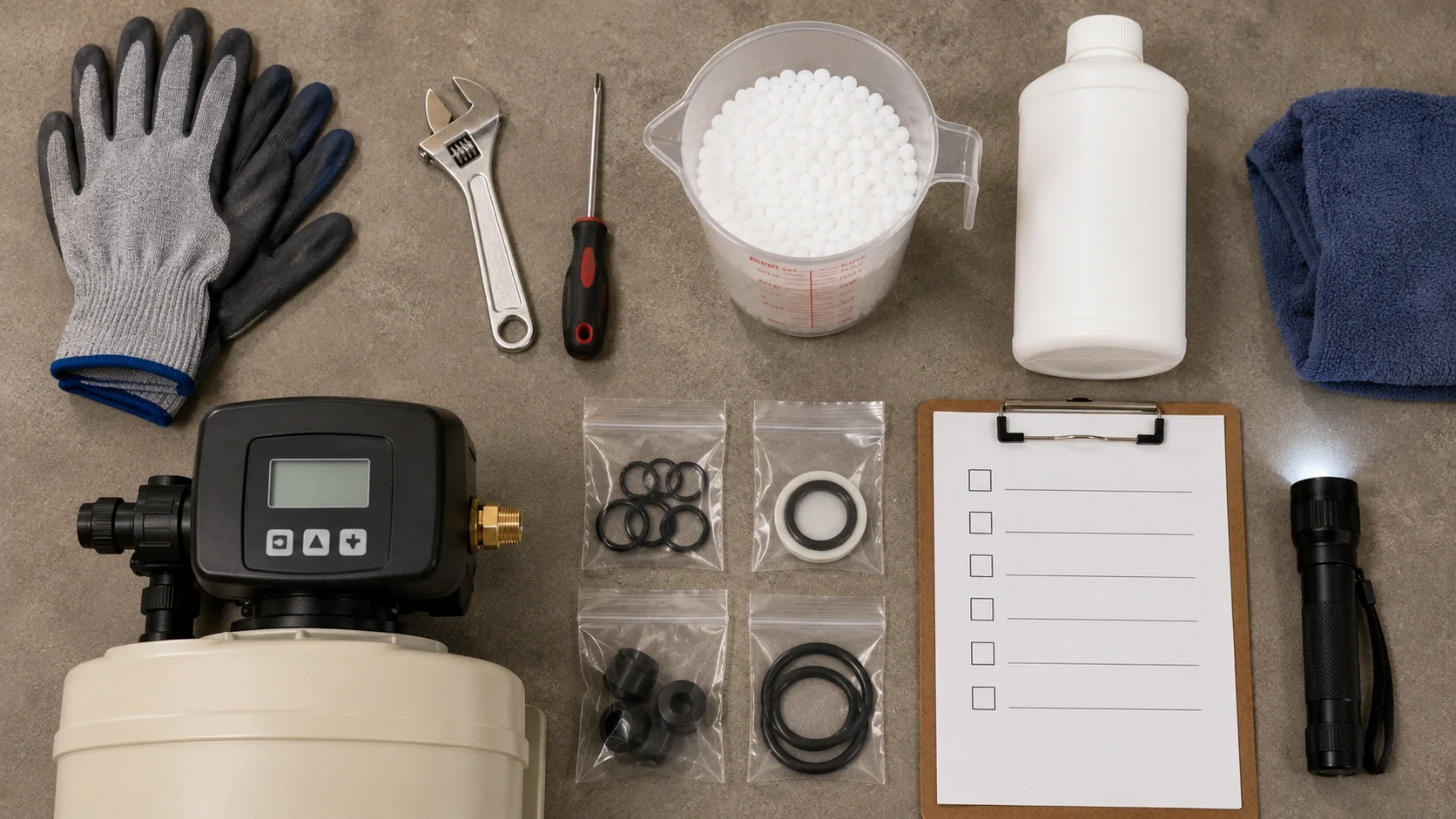

Maintenance Tips for Each Part
🔧 Brine Tank
- Check salt levels monthly
- Refill when approximately 1/4 full
- Clean completely annually to remove sediment
- Prevent salt bridging and mushing
⚙ Control Valve
- Verify programming settings regularly
- Protect from extreme temperatures and moisture
- Lubricate moving parts if recommended
- Check for error codes or unusual operation
💧 Drain Line
- Ensure proper air gap
- Check for kinks or clogs
- Verify wastewater flows freely
- Inspect connections regularly
💎 Resin Bed
- Use iron removal products if needed
- Apply resin cleaning solutions annually
- Test water hardness regularly
- Consider professional testing every few years
Replacement Parts Cost Guide
| Part | Average Cost | Lifespan | DIY Difficulty |
|---|---|---|---|
| Resin Beads | $100 - $300 | 10-15 years | Moderate |
| Control Valve | $300 - $800 | 10-20 years | Difficult |
| Mineral Tank | $200 - $600 | 15-25 years | Difficult |
| Brine Tank | $150 - $400 | 10-20 years | Easy |
| Distributor Tube | $50 - $150 | 10-20 years | Moderate |
| Bypass Valve | $50 - $200 | 10-15 years | Moderate |
| Seals & O-Rings | $10 - $50 | 5-10 years | Easy |
| Float Assembly | $20 - $60 | 5-10 years | Easy |
Pro Tip: Many parts can be replaced individually rather than replacing the entire system. This can save you hundreds of dollars. Always use manufacturer-approved parts or high-quality aftermarket options for best results.
When to Replace Water Softener Parts
Signs of Exhausted Resin Beads
If your water no longer feels soft despite proper regeneration cycles, or if you notice decreased water pressure, your resin beads may need replacement. This typically occurs after 10-15 years of service.
Control Valve Failure Indicators
System not regenerating, error codes on digital displays, water not being softened, or continuous water flow to drain are all potential signs of control valve issues.
Brine Tank Problems
Cracks in the tank, persistent salt bridging despite maintenance, or improper brine drawing may indicate the need for repair or replacement.
Seals and O-Rings
Leaks around connections or valves often indicate worn seals or O-rings that need replacement. These are relatively inexpensive parts that can prevent major water damage.
Recommended Replacement Schedule
- Resin Beads: Every 10-15 years (or when softening performance declines)
- Control Valve: As needed (typically 10-20 years)
- O-Rings and Seals: Every 5-10 years or when leaks occur
- Brine Tank: When cracked or damaged (10-20 years)
- Distributor Tube: When resin is replaced or if damaged
- Pre-Filters: Every 6-12 months (if installed)

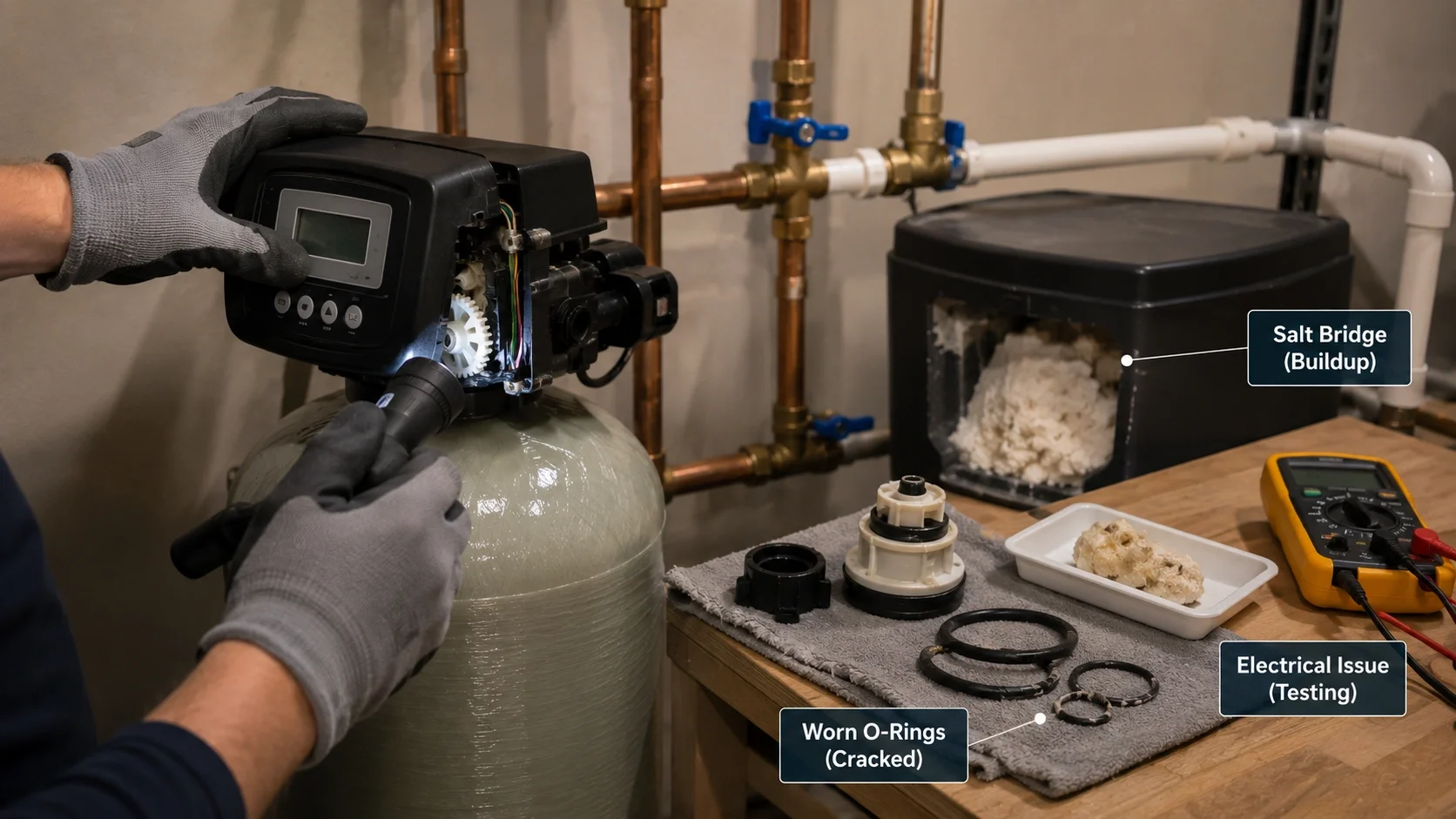

Troubleshooting Common Part Problems
⚠ Problem: Salt Bridge
- Cause: Hard crust in brine tank
- Solution: Break with broom handle, clean tank, use salt grid
- Prevention: Use high-quality salt, don't overfill, clean annually
⚠ Problem: Resin Fouling
- Cause: Iron or sediment buildup on resin
- Solution: Use resin cleaner, install sediment pre-filter
- Prevention: Regular cleaning, pre-filtration
⚠ Problem: Control Valve Stuck
- Cause: Debris or mechanical failure
- Solution: Clean or replace valve, check programming
- Prevention: Regular inspection, clean water supply
⚠ Problem: Leaking Connections
- Cause: Worn O-rings or seals
- Solution: Replace O-rings and seals
- Prevention: Regular inspection, gentle tightening
Frequently Asked Questions
How often should resin beads be replaced?
Resin beads typically last 10-15 years, but this can vary based on water quality and usage. If you notice decreased softening performance despite proper regeneration, it may be time for replacement.
Can I replace water softener parts myself?
Many basic replacements (like seals, pistons, or brine floats) can be DIY projects for those with mechanical aptitude. However, complex repairs like control valve replacement or resin changes may require professional assistance.
Do all water softeners use the same parts?
No, parts are generally manufacturer-specific and often model-specific. Always verify compatibility before purchasing replacement parts for your system.
Where can I buy genuine replacement parts?
Genuine parts can be purchased through manufacturers, authorized dealers, or reputable online retailers. Be cautious of counterfeit parts that may not meet quality standards.
What causes salt bridges in the brine tank?
Salt bridges are hard crusts that form between the salt and water in the brine tank. They're caused by moisture, humidity, using low-quality salt, or irregular salt usage. Prevent by using high-quality salt, keeping the tank dry, and cleaning regularly.
How do I know if my control valve is failing?
Signs of control valve failure include: system not regenerating, error codes on the display, water not being softened, continuous water flow to the drain, or unusual noises during operation.
Can I mix different brands of replacement parts?
It's generally not recommended to mix parts from different manufacturers unless they're specifically designed to be compatible. Always use manufacturer-approved parts for your specific model to ensure proper fit and function.
How much does it cost to replace resin beads?
Resin bead replacement typically costs $100-$300 for the material, plus labor if professionally installed. This is significantly less than replacing the entire system, which can cost $400-$2,500.
Conclusion
Understanding the various components of your water softener empowers you to perform basic maintenance, troubleshoot problems, and make informed decisions about repairs and replacements. Regular care of your system's parts can significantly extend its lifespan and maintain optimal performance.
By familiarizing yourself with the mineral tank, brine tank, control valve, and other components, you'll be better equipped to identify issues early and address them before they become major problems. Whether you choose to perform maintenance yourself or work with a professional, this knowledge will help you communicate effectively and ensure your water softening system continues to provide quality softened water for years to come.

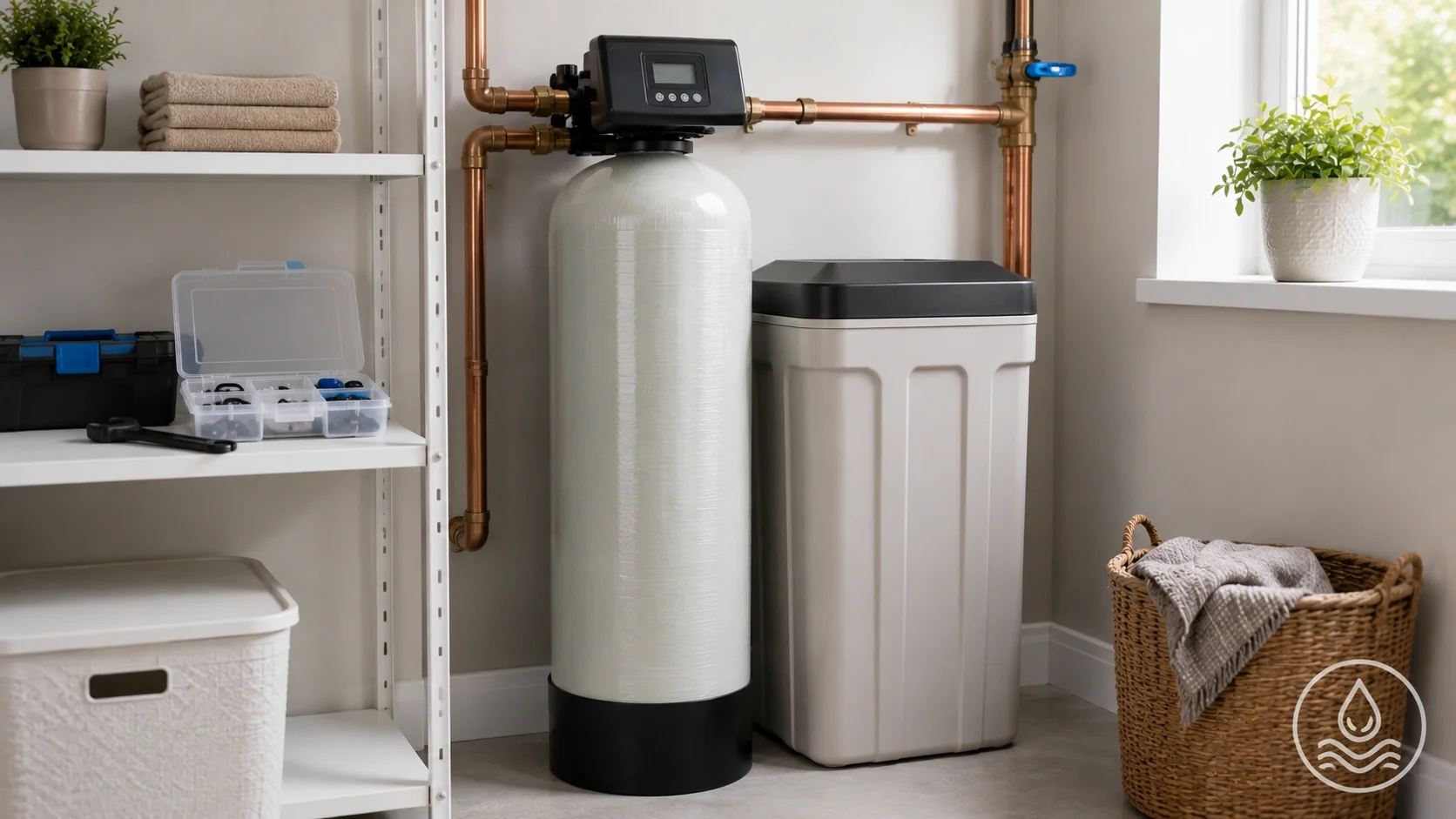

Quick Maintenance Summary
Monthly: Check salt levels in brine tank
Quarterly: Inspect for leaks, check water hardness
Annually: Clean brine tank, check control valve settings
Every 2-3 Years: Professional system inspection
Every 10-15 Years: Replace resin beads
Remember: A well-maintained water softener can last 15-20 years or more. Investing time in understanding and maintaining your system's parts is one of the best ways to protect your investment and ensure consistent water quality for your home.
